features:
-
adjustable standby screen brightness from 0–100 percent
-
designed for water heating, electric floor heating, and gas boilers
-
secure child-lock function to prevent accidental changes
-
intelligent linkage with sensors for energy-saving automation
-
energy-saving mode reducing electricity costs by up to 20 percent
-
modern compatibility with multiple heating systems
-
ambient back light that can be turned on or off
-
smooth temperature adjustment through the smart knob
-

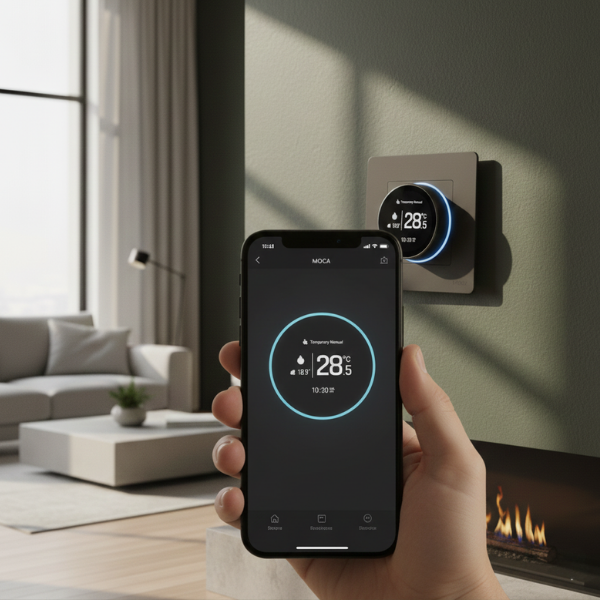

works with the Smart Life and Tuya apps
-
requires Zig Bee gateway for full smart functionality
specs:
-
voltage and frequency: 95–245V AC, 50/60Hz
-
current load: 5A for water heating and boilers, 16 A for electric heating
-
communication method: Zig Bee
-
module model: ZT3L
-
maximum RF power: +20dBm
-
operating frequency: 2.405–2.480GHz
-
standard: IEEE 802.15.4
-
sensor type: NTC 3950, 10K
-
accuracy: ±1°C
-
set temperature range: 5–35°C
-
display temperature range: 5–99°C
-
storage temperature: 0–45°C
-
power consumption: under 1.5W
-
timing error: under 1 percent
-
casing: fireproof PC plus ABS
-
protection level: IP20
-
requires ZigBee gateway (sold separately)
